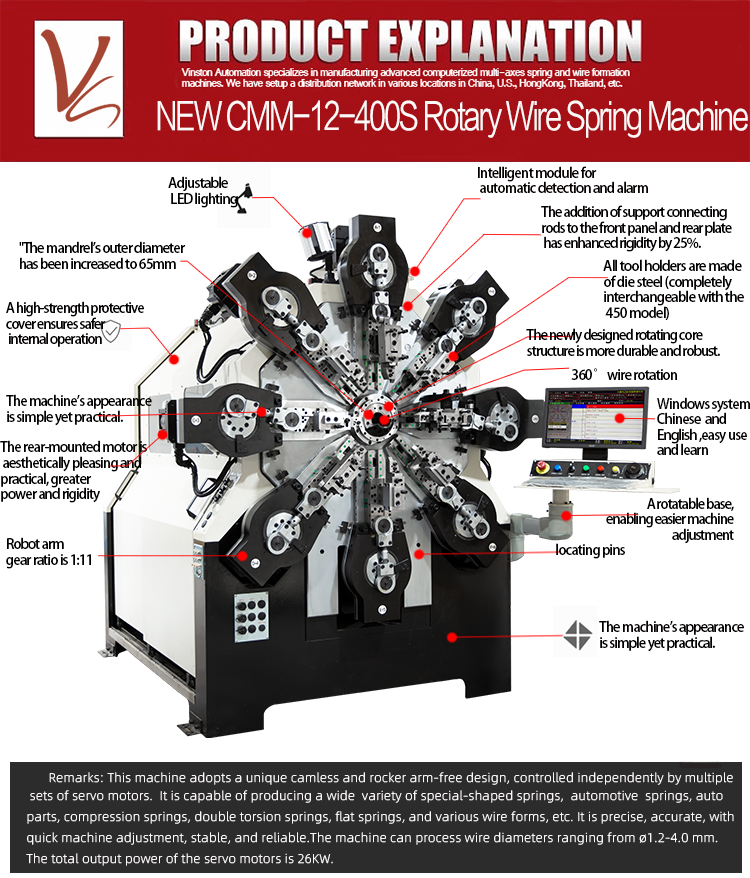

Product Advantage
1、All servo slides utilize double rails for stable and precise adjustmets.
2、X-Y slide (lateral slide) facilitates pitch adjustments and provides an extra blade option.
3、Dual or two spinner support.
4、Fault detection and warning systems provide lights out production.
Technical Parameters
| MODEL | CMM-12-500S |
CMM-12-450S |
CMM-12-400S | |
| Wire Dia. | 1.5-5.0mm | 1.2-4.5mm | 1.2-4.0mm | |
| Max. Wire Feed | 10000.00mm | 10000.00mm | 10000.00mm | |
| Min. Wire Feed | 0.01mm | 0.01mm | 0.01mm | |
| Max. Wire Feed Length | Unlimited | Unlimted | Unlimted | |
| Number Of Axes | 12 Axis | 12 Axis | 12 Axis | |
| Power | 50.2 KW | 39KW | 26KW | |
| Voltage | 220V/380V/410V | 220V/380V/410V | 220V/380V/410V | |
| Hardware | Industrial | Industrial | Industrial | |
| Voltage Regulator Power | 30KVA | 30KVA | 30KVA | |
|
Air Compressor System |
Air pressure | 5-6kg/cm | 5-6kg/cm | 5-6kg/cm |
| Air cylinder | 3pcs | 3pcs | 3pcs | |
| Dimensions | Depth | 2200mm/87'' | 2200mm/87'' | 2200mm/87'' |
| Width | 1760mm/70'' | 1760mm/70'' | 1760mm/70'' | |
| Height | 2100mm/83'' | 2100mm/83'' | 2100mm/83'' | |
| Machine Weight | 3800kg/8378lbs | 3750kg/8268lbs | 3700kg/8157lbs | |

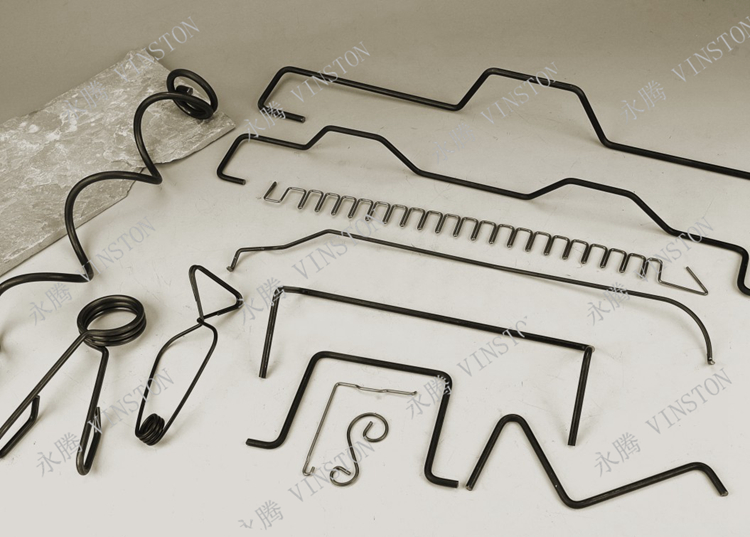

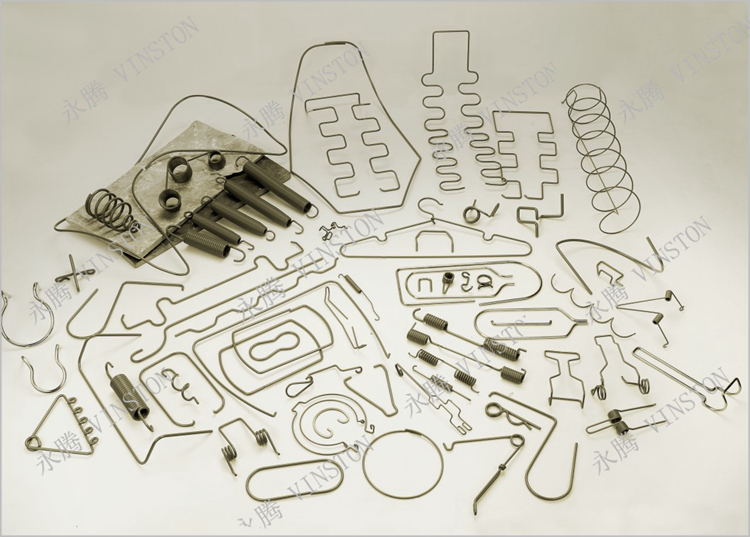

Sample Display
