CNC Busbar Bending Machines

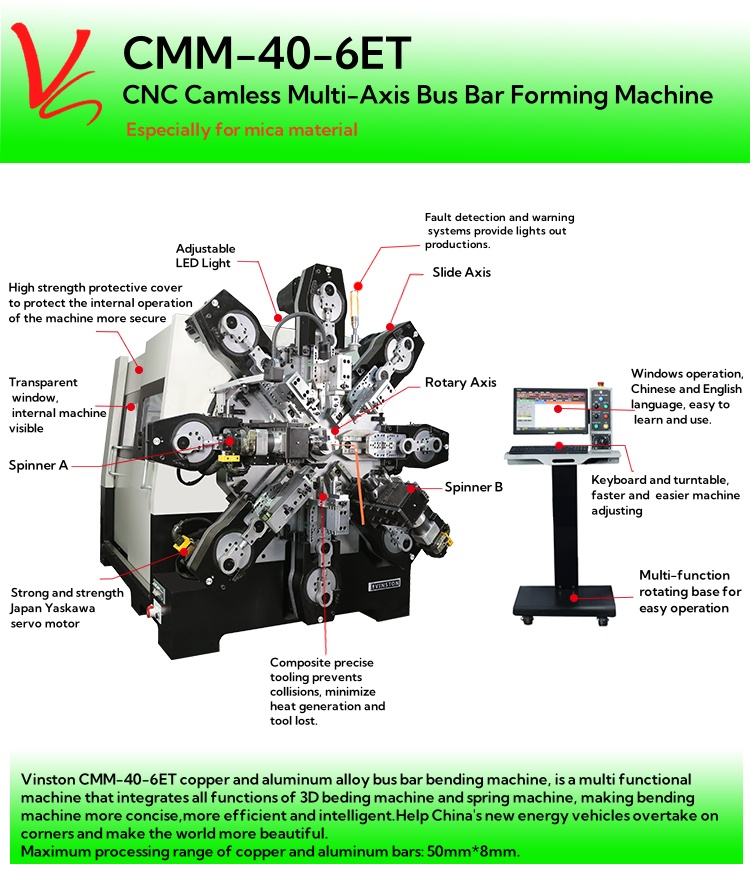

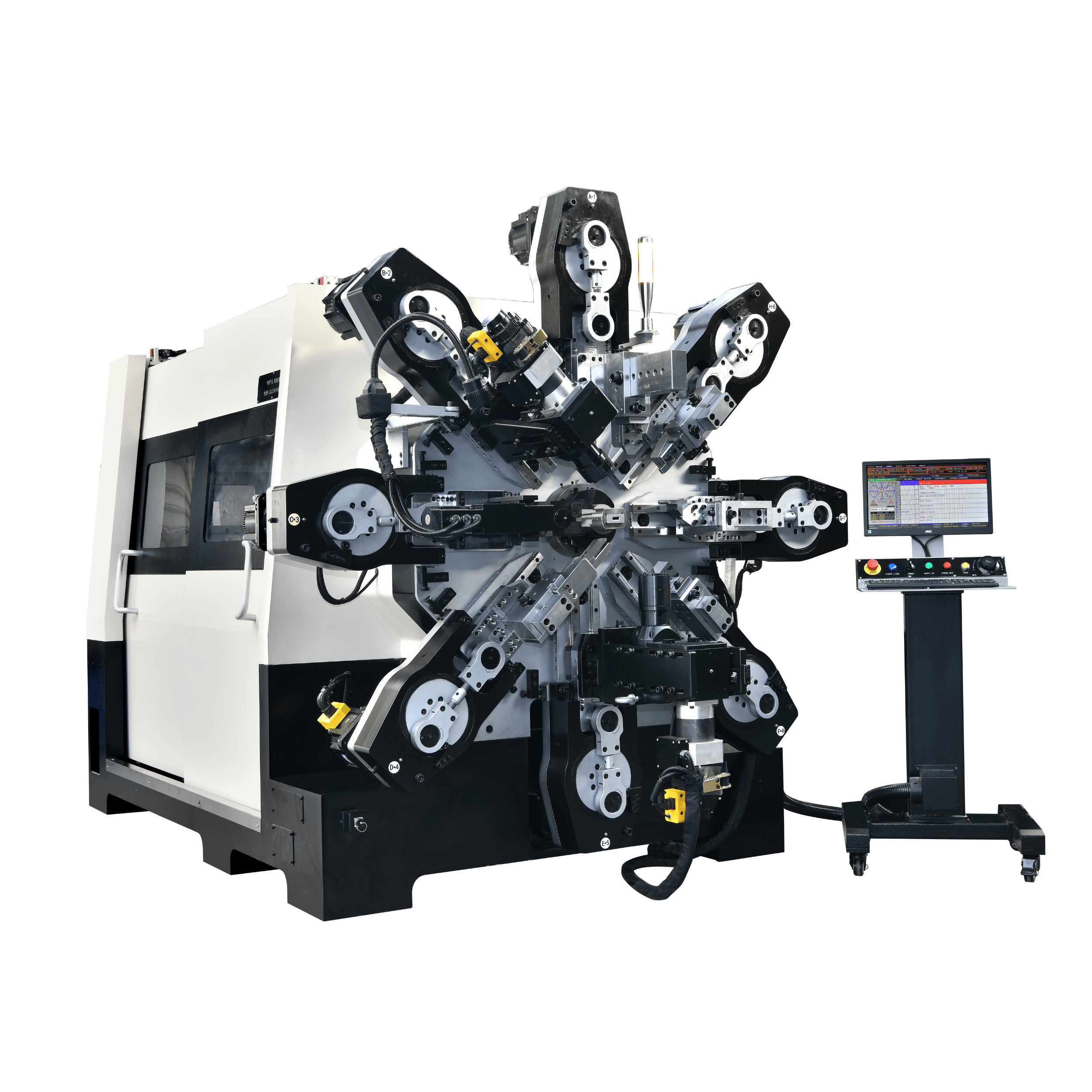

CMM-40-6E Busbar Forming Machine

The CMM-40-6E copper busbar bending machine (maximum pass size: 50mm * 8.0mm) is a multi-functional dedicated machine that integrates all the functions of 3D bending machines and spring machines. This machine adopts a unique camless and armless design, controlled by multiple servo motors independently. Vinston busbar bending machines are widely used in the forming of conductive busbars, new energy battery connection strips, new energy battery modules, copper busbars, hard busbars, conductive strips, battery connection strips, copper strips, and bare busbars. It features high precision, quick setup, and stable reliability.

GET A QUOTE

Product Advantage

1、Manufacture various shapes of copper and aluminum alloy bus bars.

2、All servo slides utilize double rails for stable and precise adjustments.

3、Composite precise tooling prevents collisions, minimize heat generation
and tool lost.

4、Fault detection and warning systems provide lights out productions.

5、A Windows operating system with muti-language support facilitates ease of
use and a minimal learning curve.

Technical Parameters


MODEL CMM-40-6E CMM-40-6ES CMM-40-6ET
Wire Dia. 50.0*8.0mm(Soft) 45.0*8.0mm(Soft) 40.0*6.0mm(Soft)
Max. Wire Feed Length Unlimited Unlimited Unlimited
Number Of Axes 13 Axis(Servo cutter included) 13 Aixs(Servo cutter included) 15 Axis(Servo cutter included)
Power 62KW 52.8KW 46.3KW
Voltage 220V/380V/410V 220V/380V/410V 220V/380V/410V
Software Industrial Industrial Industrial
Voltage Regulator Power 50KVA 45KVA 45KVA
Dimensions Depth 3600mm/142'' 3600mm/142'' 3600mm/142''
Width 2200mm/87'' 2200mm/87'' 2200mm/87''
Height 2350mm/93'' 2350mm/93'' 2350mm/93''
Machine Weight
 9400kg/20723lbs 9400kg/20723lbs 9400kg/20723lbs

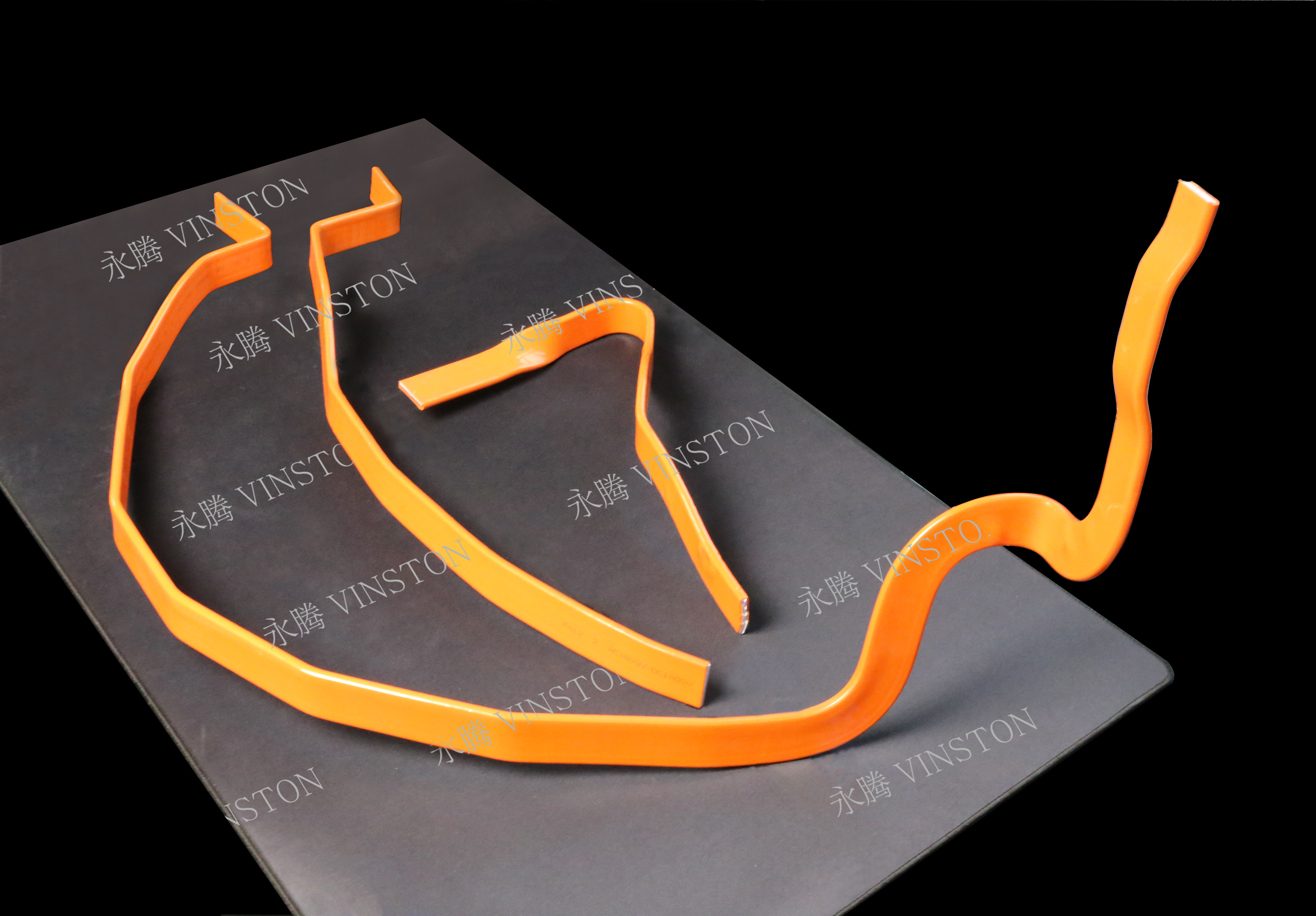

Sample Display
