CNC Busbar Bending Machines

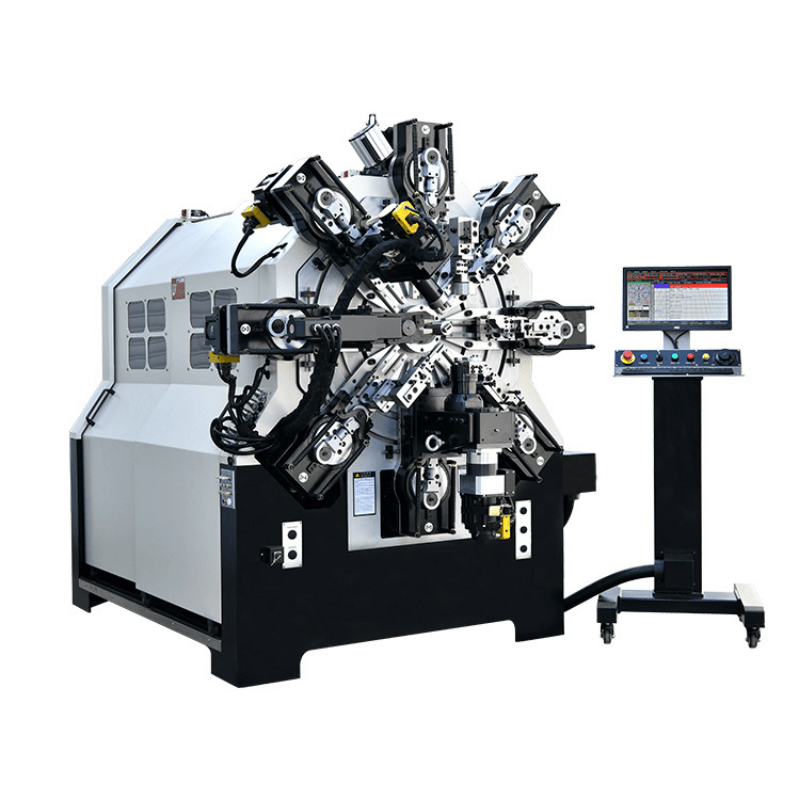

CMM-35-4E Busbar Forming Machine

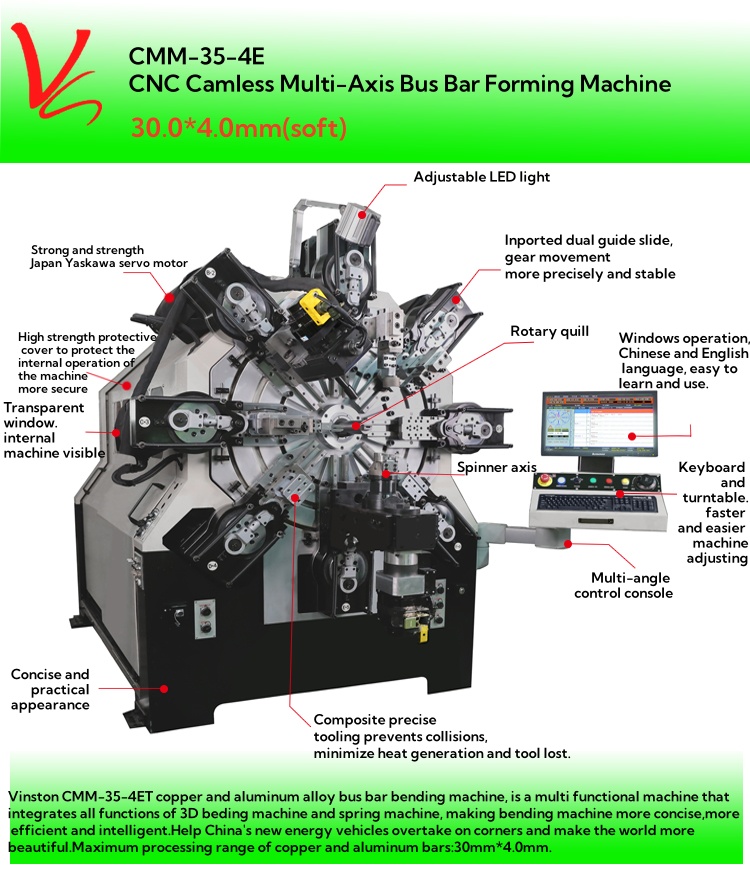

The CMM-35-4E busbar bending machine (maximum pass size: 35mm * 8.0mm) is a multi-functional dedicated machine that integrates all the functions of 3D bending machines and spring machines. This machine adopts a unique camless and armless design, controlled by multiple servo motors independently. Vinston busbar bending machines are widely used in the forming of conductive busbars, new energy battery connection strips, new energy battery modules, copper busbars, hard busbars, conductive strips, battery connection strips, copper strips, and bare busbars. It features high precision, quick setup, and stable reliability.

GET A QUOTE

Product Advantage

1、Manufacture various shapes of copper and aluminum alloy bus bars.

2、All servo slides utilize double rails for stable and precise adjustments.

3、Composite precise tooling prevents collisions, minimize heat generation
and tool lost.

4、Fault detection and warning systems provide lights out productions.

5、A Windows operating system with muti-language support facilitates ease of
use and a minimal learning curve.

Technical Parameters


MODEL CMM-35-4E CMM-35-4ET
Wire Dia. 30.0*4.0mm(Soft) 30.0*4.0mm(Soft)
Max. Wire Feed Length Unlimited Unlimited
Number Of Axes 13 Axis(Servo cutter included) 15 Aixs(Servo cutter included)
Power 51.7KW 46.45KW
Voltage 220V/380V/410V 220V/380V/410V
Hardware Industrial Industrial
Voltage Regulator Power 45KVA 30KVA
Robotic Control System Standard Standard
Dimensions Depth 3600mm/142'' 3600mm/142''
Width 2200mm/87'' 2200mm/87''
Height 2350mm/93'' 2350mm/93''
Machine Weight
 9400kg/20723lbs 9400kg/20723lbs

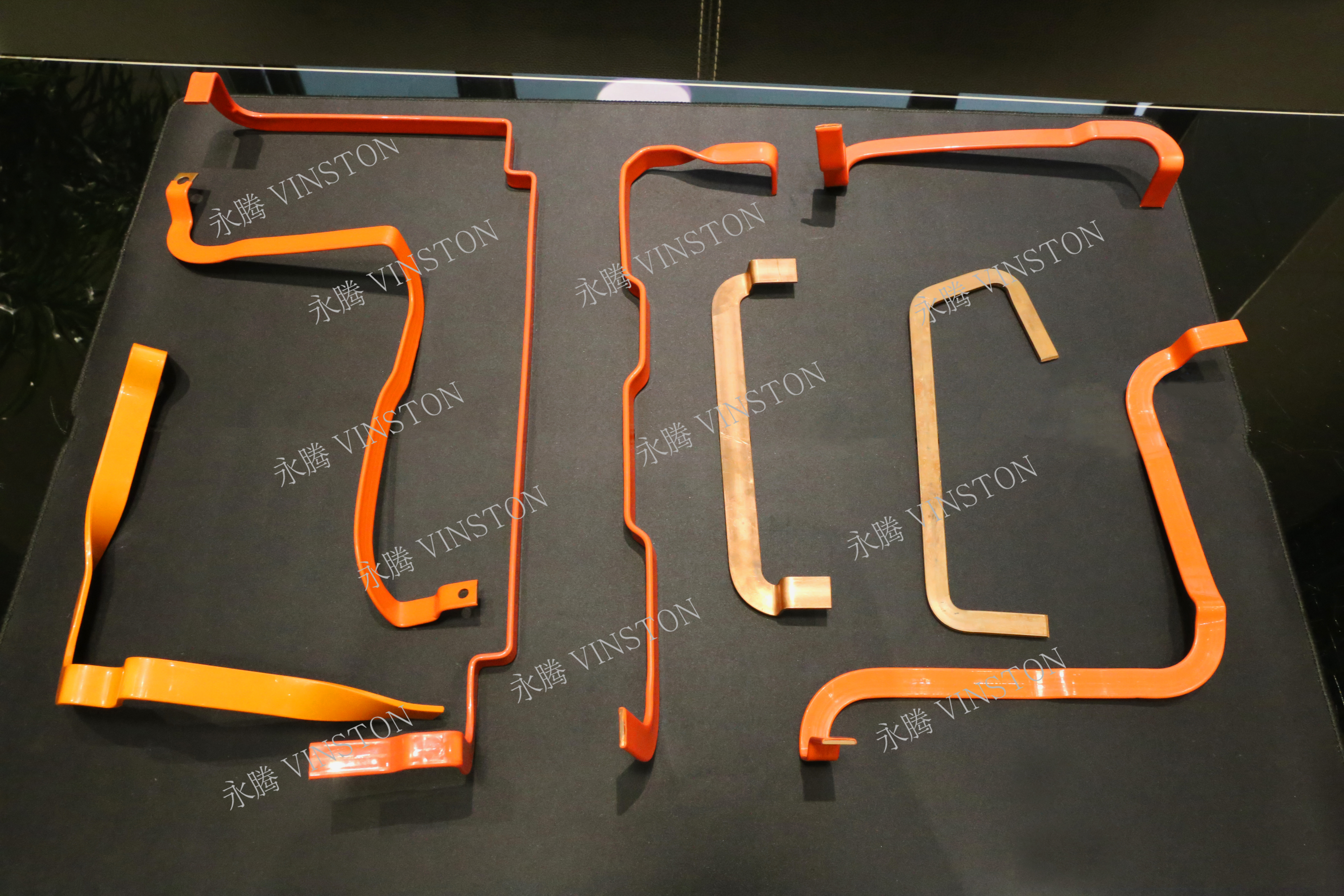

Sample Display
