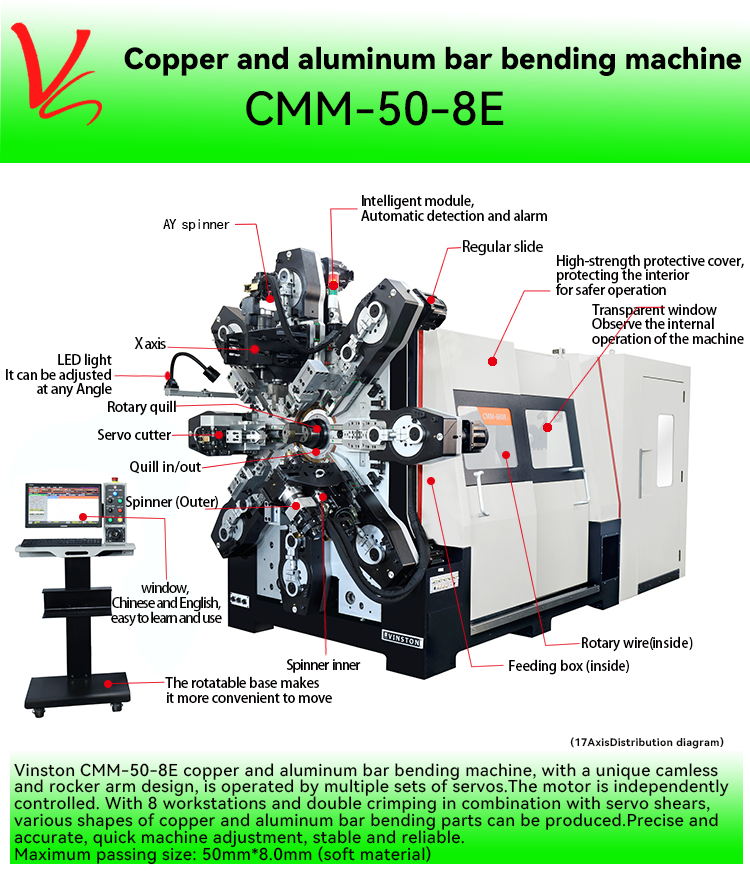

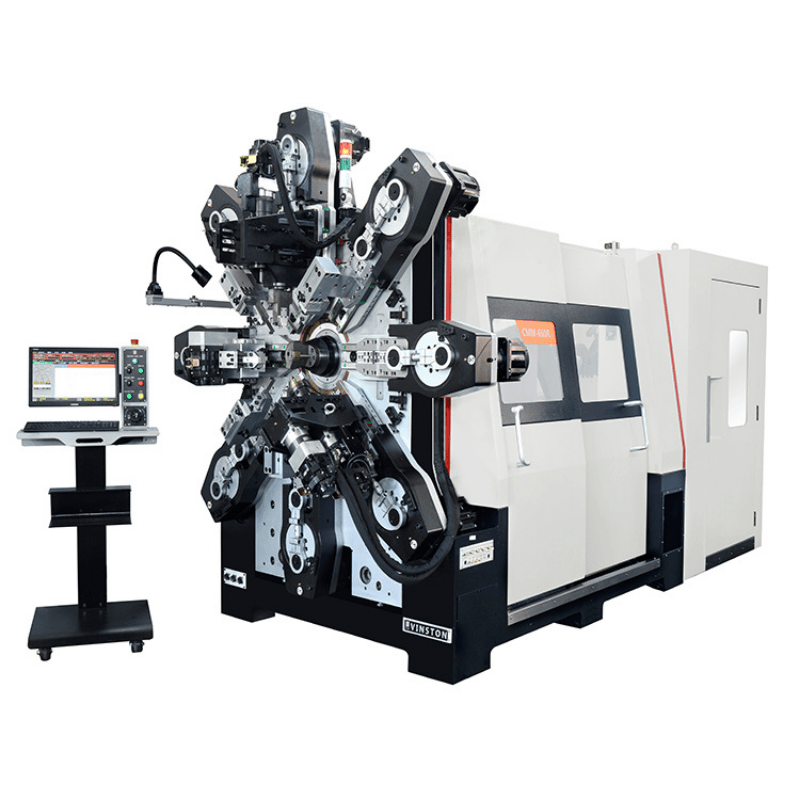

CMM-50-8E Busbar Forming Machine

CMM-50-8E busbar bending machine (maximum size of 50.0*8.0mm can be processed) is a multi-functional special machine that integrates all the functions of a 3D bending machine and a spring machine. This machine adopts a unique camless and rotary design. Independently controlled by multiple sets of servo motors, Vinston busbar bending machine is widely used in conductive bar forming, new energy battery connecting bar, new energy battery module, copper busbar forming, hard bar forming, conductive bar, battery connecting bar, copper bar, bare bar forming, etc. Precise and accurate, fast machine adjustment, stable and reliable.

GET A QUOTE

PRODUCTS

Busbar Machine

New Machines

Spring Machine

Wire Bending

Spring Former

Wire Decoiler

Knives Accessories

DETAILS

Product Advantage

1、Manufacture various shapes of copper and aluminum alloy bus bars.

2、All servo slides utilize double rails for stable and precise adjustments.

3、Composite precise tooling prevents collisions, minimize heat generation
and tool lost.

4、Fault detection and warning systems provide lights out productions.

5、A Windows operating system with muti-language support facilitates ease of
use and a minimal learning curve.

Technical Parameters

MODEL		CMM-50-8E
Wire Dia.		50.0*8.0MM
Max. Wire Feed Length		Unlimited
Number Of Axes		16 Axis(Servo cutter included)
Power		72.2-85KW
Voltage		380V
Hardware		Industrial
Voltage Regulator Power		50KVA
Robotic Control System		Standard
Dimensions	Depth	3900mm/154''
	Width	2186mm/86''
	Height	2200mm/87''
Machine Weight		11000kg/24251lbs

Sample Display
